Socket Purchase Table

Image Part
Number		 Base Valve Type Style Material Size (mm) Unit Price (£)
1-9		 Unit Price (£)
10+
ECD Socket Image
SK8CC1-G
AO8
EL34, GZ34, 6L6GC, KT88 ETC
chassis
ceramic
26.5
 2.94
2.35
Description

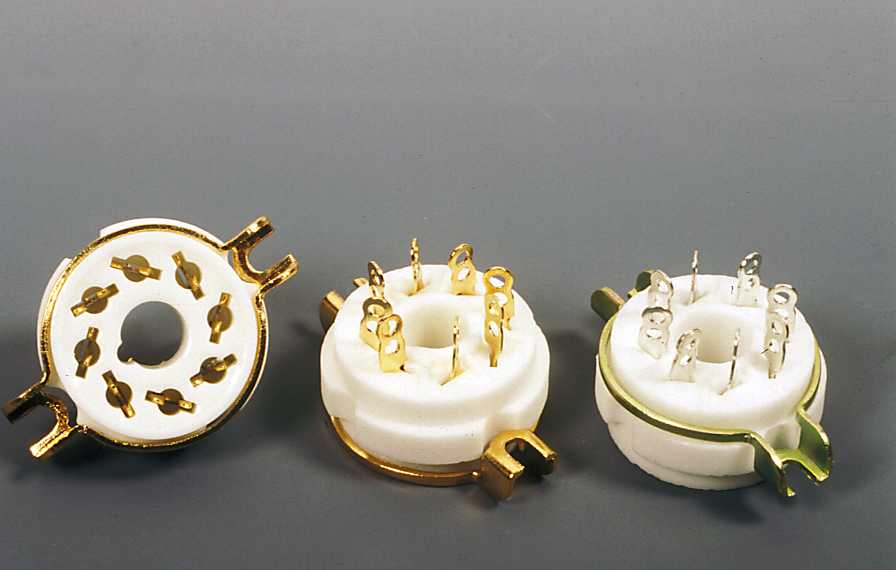

white ceramic, separate bracket, prong shaped valve pin retainers, gold plated contacts & bracket. Can be mounted above or below chassis.
Number of Sockets required
Enter the number of sockets required		 sockets

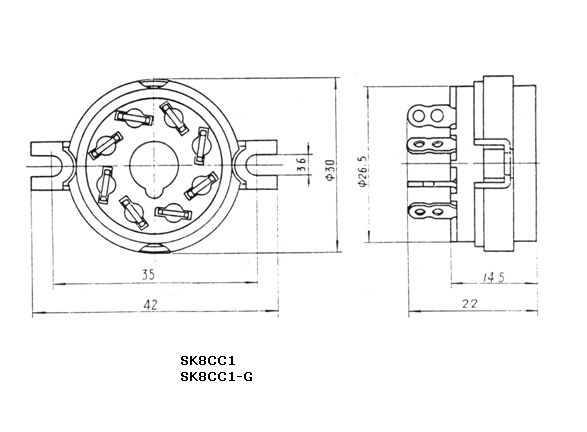

Schematic (click to see a bigger version)


Not found what you are looking for?

Socket Guidance Notes
Type either a part number or a base number
